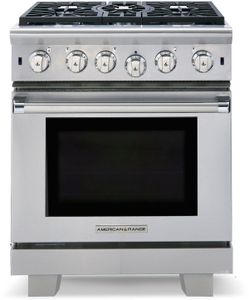

American Range Cuisine Series 30" Stainless Steel Pro Style Gas Range


Model #:

ARR-530-L

Model #: ARR-530-L
693094
American Range
$4,839.00

At a Glance

Product Dimensions 37.75"h x 29.88"w x 30.5"d

Balanced turbulent heat distribution is essential when baking, roasting, and dehydrating food. The American Range convection oven technology features a convection motor and louvered side panels to enhance uniform heat distribution throughout the large oven cavity.Read More

$4,839.00

What We Offer

Protect Your Purchase

View Options

None Selected

Get to know this product.

Product Overview

Product Overview

Balanced turbulent heat distribution is essential when baking, roasting, and dehydrating food. The American Range convection oven technology features a convection motor and louvered side panels to enhance uniform heat distribution throughout the large oven cavity. The strategic placement of the convection fan ensures consistent heat distribution even when challenged with cooking the largest turkey, ham or roast.

Sealed burners deliver exceptional performance at every level setting and lift off to provide easy cleanup.

3 sizes of burners to serve your everyday needs: 17,000 BTU (lg), 13,000 BTU (med), 9,000 BTU (sm).

Variable infinite flame settings for all sealed top burners.

Fail-safe system ensures re-ignition in the event the flame goes out even on the lowest burner setting.

Continuous and flush commercial-grade cast iron grates allow for easy transfer of pots and pans across the entire cooking surface.

Sealed Single Piece tooled porcelainized cook top can hold more than a gallon of spills.

Analog controls provide easy, push and turn operation ensuring child safety.

Blue LED light indicates oven functions.

Heavy metal die-cast black satin knobs with chrome bezels.

Stainless Steel Island Back Trim included and installed.

Multiple functions include: Standard Bake, Innovection Convection Bake, Infrared Broil and Fan mode.

Innovection System with convection fan optimizes uniform air flow.

Two chrome racks glide at 5 (including base) cooking levels on heavy chrome side supports.

Accommodates full size commercial sheet pan.

Front panel switch controls oven lighting for optimal visibility.

Oven front construction is a durable, precision-made one piece frame.

Useful Documents
Specifications

General Specs

ColorStainless Steel
Air FryNo
Cooktop FeaturesContinuous Grate, Sealed Burners
Cooktop Surface StyleGrate
Appliance Fit Width (in.)30
Grate MaterialCast Iron
Total Capacity (cu. ft.)4.4
Color Finish NameStainless Steel
CollectionCuisine Series
ADA CompliantNo
Induction CookingNo
Range TypePro-Style
Number of Elements/Burners5
Burner TypeSealed
Convection CookingYes
Self CleaningNo
Sabbath ModeNo
Griddle IncludedNo
Hot Surface IndicatorNo
Grill IncludedNo
Voltage120
Frequency60
Amp15
Fuel TypeNatural Gas
Number of Oven(s)Single
Depth (in.)30.5
Height (in.)37.75
Width (in.)29.88
Oven FeaturesLED Display
Oven Cleaning MethodManual Clean

Overview

Oven Dimensions26-1/2” W x 19” D x 15” H
Gas Supply7" W.C. Natural, 11" W.C. Propane
Electrical Supply120 VAC 15 AMP 60 Hz Single Phase
Light IndicatorBlue
Handle TypeProfessional
WarningProposition 65 Warning for California Residents
