Product Dimensions 37.5"h x 35.88"w x 29.94"d

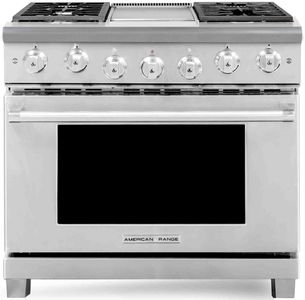

The Iconica Series from American Range delivers exceptionalperformance at every setting. Sealed burners provide up to 25,000 BTUs of powerful cooking heat. Commercial grade continuous cast iron grates allow for the easy transfer for pots and pans across your cooking surface.Read More
View Options
Bake element 3,500 watts
Broil element 3,500 watts
Convection element 2,500 watts
Convection fan
Modes: Bake, Convection Bake, Broil, Fan, Roast, Convection Roast, Warm, Proof, Dehydrate, Clean
Red lights indicate oven functions.
The Advanced Cooking System creates uniform air flow by cycling different elements depending on cooking mode.
Two chrome plated, heavy-duty racks with 6 positions on heavy gauge chrome side supports.
8-pass broiler provides rapid searing with 3,500 watts of power
Large oven accommodates full size commercial sheet pans.
Oven lights controlled by switch on front panel.
Oven front construction is a durable, precision-made one piece frame
True commercial lift-off burners for easy cleaning.
3 sizes of burners to serve your everyday needs: 25,000 BTU (lg), 18,000 BTU (med) and 12,000 BTU (sm)
Variable infinite flame settings for all open top burners.
Automatic, electronic ignition ensures re-ignition in the event the flame goes out, even on the lowest burner setting
Continuous commercial-grade cast iron grates.
Porcelainized burner pans catch spills and lift out for easy cleaning
Dual action valves provide easy, safe operation.
Heavy duty metal die-cast satin knobs with chrome bezels
Front panel switch controls oven lighting for optimal visibility.
One piece durable precision frame construction oven front.
Stainless steel Island Back trim included and installed.
General Specs | |
Color | Stainless Steel |
Air Fry | No |
Cooktop Features | Continuous Grate, Griddle Included, Digital Display |
Cooktop Surface Style | Grate |
Depth w/Door Open 90 Degrees (in.) | 45.38 |
Appliance Fit Width (in.) | 36 |
Manufacturer Warranty | 2 Year Limited |
Grate Material | Cast Iron |
Total Capacity (cu. ft.) | 5.6 |
Color Finish Name | Stainless Steel |
Collection | Performer Iconica |
Number Of Rack Positions | 6 |
Induction Cooking | No |
Range Type | Pro-Style |
Number of Elements/Burners | 4 |
Burner Type | Open |
Convection Cooking | Yes |
Self Cleaning | Yes |
Griddle Included | Yes |
Cooktop Surface Style-Old | Grate |
Voltage | 120 |
Frequency | 60 |
Amp | 15 |
Fuel Type | Dual Fuel (LP) |
Number of Oven(s) | Single |
Depth (in.) | 29.94 |
Height (in.) | 37.5 |
Width (in.) | 35.88 |
Oven Features | Self-Cleaning |
Oven Cleaning Method | Self Cleaning |
