Product Dimensions 11.88"h x 34.5"w x 22"d
Featuring heavy gauge Stainless Steel "Seamless" construction that delivers superior quality and Italian Craftmanship with fully retractable knobs with blue backlighting, that can be hidden when not in use to not interfere with the hood aesthetics.Read More
View Options

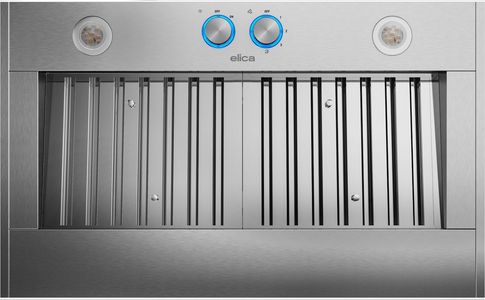

Provides professional grade performance, while being discreetly mounted inside the cabinetry.
Featuring heavy gauge Stainless Steel "Seamless" construction that delivers superior quality and Italian Craftmanship with fully retractable knobs with blue backlighting, that can be hidden when not in use to not interfere with the hood aesthetics. Arezzo is available with a 600 CFM blower in 28 1/2" width and equipped with a 1200 CFM blower for widths of 34 1/2", 40 1/2" and 46 1/2" for extraordinary ventilating power. Easy maintenance, higher eficiency and a cleaner kitchen are ensured by Elica's patented baffle slot filters, which capture a higher percentage of contaminants and hold larger volumes of grease than traditional baffle filters. Designed for standard ducted installation only.
An exclusive sound-deadening technology that effectively reduces sound levels by over 35%
Senses extreme temperatures (>158 °F ) and automatically adjusts the blower speed to HIGH.
A baffle stainless steel filter with a mesh backing allows air to flow through while trapping grease, which collects in the high-capacity baffle cavities.
Special features and high performances for models with aspiration capacity between 600 and 1200 CFM’s.
Heavy gauge stainless steel “Seamless” construction that delivers refined elegance.
General Specs | |
Width (in.) | 34.5 |
Height (in.) | 11.88 |
Duct Size (in.) | 6” Round |
Depth (in.) | 22 |
Collection | Arezzo |
Color | Stainless Steel |
Manufacturer Warranty | 3 Year Parts & Labour |
Color Finish Name | Stainless Steel |
Range Hood Type | Insert |
ADA Compliant | No |
ENERGY STAR Certified | No |
Outdoor Approved | No |
Appliance Fit Width (in.) | 34 |
Product Weight (lbs.) | 54.9 |
Smart Compatible | No |
Maximum CFM | 600 |
Bulb Type | LED |
Grease Filter Type | Baffle |
Filter Indicator Light | No |
Sones Rating | 1.7 - 7.0 |
Fan Speed Options | 4 |
Vent Location | Top |
Height Above Cooktop | 24 - 30 |
Ventilation Direction | Horizontal |
Shipping Depth (in.) | 27.52 |
Shipping Width (in.) | 27.52 |
Shipping Height (in.) | 16.57 |
Width (cm) | 87.63 |
Height (cm.) | 29.21 |
Depth (cm.) | 55.88 |
Height Above Cooktop Centimeter | 60.96 - 76.20 |
Voltage | 120 |
Amp | 4.1 |
Frequency | 60 |
Range Hood Features | Heat Sensor, Light |
Noise Level (Sones) | Standard - (High) |
Ventilation Type | Convertible (Both) |
