Product Dimensions 47.13"h x 29.94"w x 28.5"d

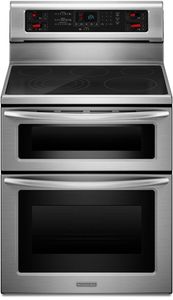

KitchenAid® Architect® Series II 30" Free Standing Electric Double Oven Range-Stainless Steel with 6.7 cu. ft. total capacity, 5 radiant elements and Even-Heat™ true convectionRead More
2.5 cu. ft. upper oven capacity/4.2 cu. ft. lower oven capacity provide more room to cook multiple dishes simultaneously
10" 3200-watt element accommodates high-temperature cooking methods like rapid boiling and searing
Even-Heat True Convection System provides consistent heating and even cooking on both lower oven racks
EasyConvect Time and Temperature Conversion System takes the guesswork out of convection cooking
The oven's slow cook function provides superb slow cooking without taking up valuable counter space
Roll-out rack extends on ball-bearing rollers for easy loading and unloading of large or heavy dishes
One triple radiant element; three single radiant elements; one warming element
General Specs | |
Color | Stainless Steel |
Appliance Fit Width (in.) | 30 |
Total Capacity (cu. ft.) | 6.7 |
Total Upper Oven Capacity (cu. ft.) | 2.5 |
Color Finish Name | Stainless Steel |
ADA Compliant | No |
Induction Cooking | No |
Range Type | Freestanding |
Number of Elements/Burners | 5 |
Fuel Type | Electric |
Number of Oven(s) | Double |
Depth (in.) | 28.5 |
Height (in.) | 47.13 |
Width (in.) | 29.94 |
Capacity | |
Total Lower Oven Capacity: | 4.2 |
Construction | |
Handle Color: | Stainless Steel |
Handle Type: | Arch |
Light(s): | Yes |
Oven Door Latch: | Automatic |
Oven Door Window Type: | Extra Large |
Door Swing Option: | Drop Down |
Dimensions | |
Shipping Weight: | 225 |
Weight: | 225 |
Display | |
Controls: | Digital |
Other | |
Installation Aids: | Anti-Tip Bracket |
Clock Type: | Digital |
Digital Display Items: | Touch-Activated Oven/cooktop Control |
Cooking System: | Convection |
Element Type: | Radiant |
Safety Features: | Oven Lockout, Hot Surface Indicator Lights, Automatic Shut-Off, Oven In Use Light |
Number of Oven(s): | 2 |
Baking: | Yes |
Roasting: | Yes |
Broiling: | Yes |
No. of Oven Racks: | 3 |
No. of Rack Positions: | 5 |
Cleaning Method: | Self Cleaning |
Temperature Mgmt.: | Thermostat |
Light(s) Control: | Automatic and Touch Pad |
Kitchen Timer: | Yes |
Specifications | |
Electrical Requirements: | 220 V; 40 A |
Styling | |
Cabinet Color: | Stainless Steel |
Cooktop Surface: | Ceramic Glass |
Cooktop Color: | Black |
Backguard: | Stainless Steel |
