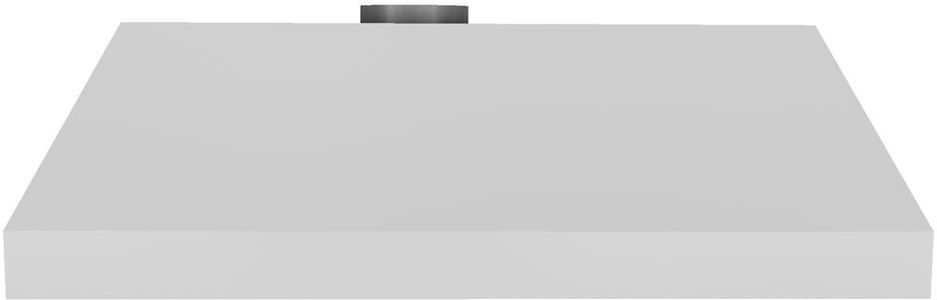

Product Dimensions 12"h x 40.38"w x 19.25"d
The standard ventilation of the BHSLD model is intended for use over standard cooking equipment.Read More
View Options
Click on the models for a list of our base model numbers for standard sizes; simply select the model you need, and then specify the finish (painted or stainless steel). All liners in this series are 19 1/4" deep. Recommended mounting height is 24" - 27" above the cooking surface. All Vent-A-Hood products are suitable for use in damp locations (outdoor applications such as a covered patio) when installed in a GFCI protected branch circuit.
*Special Notes: LED lights. This model is not available with heat lamps.
General Specs | |
| Width (in.) | 40.38 |
| Height (in.) | 12 |
| Duct Size (in.) | 6 |
| Depth (in.) | 19.25 |
| Color | Stainless Steel |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| ENERGY STAR Certified | No |
| Appliance Fit Width (in.) | 42 |
| Maximum CFM | 300 |
| Sones Rating | 5.4 |
| Voltage | 115 |
| Noise Level (Sones) | Standard - (High) |
| Ventilation Type | Ducted |
Display | |
| Controls: | Mechanical |
Other | |
| Number of Lights: | 2 |
| Sones (Noise Level) Rating: | 5.4 |
