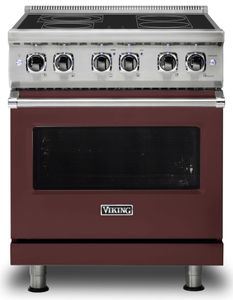

Product Dimensions 37"h x 29.88"w x 28.69"d
These are the icons - the style and power that introduced professional performance to the home. The 5 Series Ranges are equipped with a Pro Sealed Burner System, VariSimmer™ Setting and SureSpark™ Ignition System to ensure perfect temperature control even at the most delicate settings. The redesigned electric range provides both the largest oven capacity available and the largest convection fan on the market. TruGlide™ full-extension rack and three halogen lights add a world of convenience. And heavy duty metal knobs with stainless steel finish offer precise control over the QuickCook™ surface elements - which reach full power in nearly three seconds.Read More
QuickCook™ Surface Elements utilize ribbon technology – elements reach full power in about three seconds
Wide range of surface elements and wattages
High infrared transmission for fast surface cooking, regardless of type of cookware used
Heavy-duty BlackChrome™ knobs and square bezels shipped standard
One of the largest oven cavities in the industry
Patented Vari-Speed™ Dual Flow Convection System has the largest convection fan in the industry
8 1/2” fan works bi-directionally for maximum airflow and excellent cooking results
Concealed 10-pass dual bake element provides precise temperature control
Large 10-pass broiler with heat reflector
Rapid Ready™ Preheat provides one of the fastest preheat times, so your oven is ready to begin cooking when you are
Oven(s) have six porcelain-coated rack positions and come standard with three racks
Gentle Close™ Door allows door to close slowly
New larger window opening
Three halogen oven lights for excellent visibility throughout the oven cavity
High-performance cooking modes include bake, convection bake, TruConvec convection cooking, convection roast, broil, convection broil, convection dehydrate, and convection defrost
Strong, wear-resistant glass ceramic surface for excellent cleanability
Self-cleaning porcelain oven
Concealed 10-pass dual bake element makes for easy cleanup of the oven cavity
Island Trim (shipped standard with 30" range)
Maximize airflow and fluffiness with Vari-Speed Dual Flow™ Convection System. Two-speed convection system capable of turning the fan in both directions. This combined with the largest convection fan blade in the industry provides maximum airflow.
Get more control and less mess with the 10-pass concealed bake element. This dual concealed bake element provides finer temperature control and makes oven clean up easy.
Spend more time creating and less time cleaning with our easy to clean glass ceramic top and removable knobs.
Wait less and cook more with the Rapid Ready™ Preheat System. Quick preheat means less time for the user to wait for the oven to be ready to cook in.
Cook for everyone you know and still have leftovers with the largest capacity oven in the industry.
Fast high heat makes cooking a flash in the pan with our QuickCook(TM) surface elements. Surface elements utilize new ribbon technology elements - elements reaching full power in about three seconds.
General Specs | |
Color | Red |
Appliance Fit Width (in.) | 30 |
Manufacturer Warranty | 5 Year |
Total Capacity (cu. ft.) | 4.7 |
Color Finish Name | Kalamata Red |
Collection | 5 Series |
Commercial Use Approved | No |
ADA Compliant | No |
Induction Cooking | No |
Range Type | Freestanding |
Smart Compatible | No |
Wifi Capable | No |
Number of Elements/Burners | 4 |
Voltage | 208/240 |
Frequency | 60 |
Amp | 59.0/51.3 |
Fuel Type | Electric |
Number of Oven(s) | Single |
Depth (in.) | 28.69 |
Height (in.) | 37 |
Width (in.) | 29.88 |
Overview | |
Overall Height from Bottom | Base Height To top of glass frame – minimum 35 7/8” (91.1 cm) to maximum 37” (94 cm); legs adjust 1 1/8” (2.9 cm) Additions to Base Height To top of island trim – add 1” (2.5 cm); to top of backguard – add 8” (20.3 cm) To top of high shelf – add 23 1/2” (59.7 cm) |
Overall Depth from Rear | To end of side panel – 24 5/16” (61.8 cm) To front of door – 25 3/4” (65.4 cm) To end of door handle – 28 11/16” (72.9 cm) |
Gas Requirements | Shipped natural or LP/Propane gas; field convertible from natural to LP wit |
Electrical Requirements | 240-208VAC, 60 Hz electrical connection box on product, connect with locally supplied 3-wire, flexible cord or “pigtail” rated 40 amp 125-250VAC minimum. Cord must be agency approved for use with household electric ranges. |
