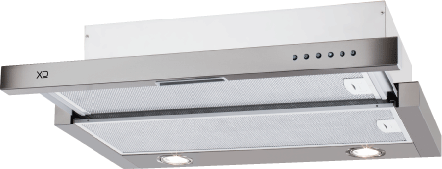

XO Fabriano Collection 29.94" Stainless Steel Under Cabinet Range Hood

XO

Model #:

XOC30S

Model #: XOC30S
61591
XO
$599.00

At a Glance

Product Dimensions 10.56"h x 29.94"w x 12.06"d

The XOC performs a vanishing act when not in use, the glide out filter closes to expose just a thin profile of stainless steel. Unlike other similar looking models – the XOC allows both the lights and blower to operate when the unit is open or closed. Another unique innovation from XO.Read More

$599.00

What We Offer

Protect Your Purchase

View Options

None Selected

Get to know this product.

Product Overview

Product Overview

The XOC performs a vanishing act when not in use, the glide out filter closes to expose just a thin profile of stainless steel. Unlike other similar looking models – the XOC allows both the lights and blower to operate when the unit is open or closed. Another unique innovation from XO. Make Up Air Compliant model numbers end with the designation “MUA”

Features and Benefits:
  • Blower and lights operate with the visor open or closed
  • Beautifully crafted Italian stainless steel
  • Sones Min to Max for each model shown below
  • 3 speed illuminated electronic controls
  • Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface
  • 15 Minute delay off feature
  • Aluminum Mesh Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning
  • Mounting Height from cooking surface 27″-32″

Duct Options and Electrical Requirements:
  • 6 inch round can be converted to 3 1/4″ x10″ Top or Rear Venting
  • Ductless Option for applications where no ducting is available
  • AC 115v—60hz (4amp)

Options:
  • Optional re-circulation kit available Model XORFK12
Useful Documents
Product Manual
Specification Sheet
Specifications

General Specs

Width (in.)29.94
Height (in.)10.56
Duct Size (in.)6
Depth (in.)12.06
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Range Hood TypeUnder Cabinet
Appliance Fit Width (in.)30
Maximum CFM600
Voltage115

Construction

Chimney:Adjustable

Dimensions

Max Height Above Cooktop:32
Min Height Above Cooktop:27

Display

Controls:Digital

General Features

Filter Type:Aluminum Mesh Filters
Cleanability:Dishwasher Safe

Other

Number of Lights:2
Air Mover(s) Speed:3
Sones (Noise Level) Rating:6.5
