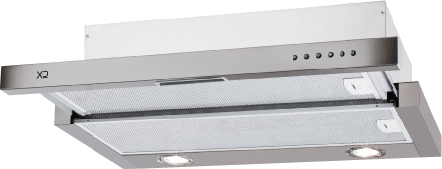

The XOC performs a vanishing act when not in use, the glide out filter closes to expose just a thin profile of stainless steel. Unlike other similar looking models – the XOC allows both the lights and blower to operate when the unit is open or closed. Another unique innovation from XO.
Chimney | Adjustable |
---|
Controls | Digital |
---|
Max Height Above Cooktop | 32 |
---|---|
Min Height Above Cooktop | 27 |
Filter Type | Aluminum Mesh Filters |
---|---|
Cleanability | Dishwasher Safe |
Number of Lights | 2 |
---|---|
Air Mover(s) Speed | 3 |
Sones (Noise Level) Rating | 4 |
Width (in.) | 29.94 |
---|---|
Height (in.) | 10.56 |
Duct Size (in.) | 6 |
Depth (in.) | 12.06 |
Appliance Color | Stainless Steel |
Positioning | Stationary |
Color Finish Name | Stainless Steel |
Range Hood Type | Under Cabinet |
Appliance Fit Width (in.) | 30 |
Maximum CFM | 395 |
Voltage | 115 |
You Might Also Need
Protection Plans
5 Year Major Appliance Warranty
$249.99
Blower and lights operate with the visor open or closed
Beautifully crafted Italian stainless steel
Sones Min to Max for each model shown below
3 speed illuminated electronic controls
Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface
15 Minute delay off feature
Aluminum Mesh Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning
Mounting Height from cooking surface 27″-32″
6 inch round can be converted to 3 1/4″ x10″ Top or Rear Venting
Ductless Option for applications where no ducting is available
AC 115v—60hz (4amp)
Optional re-circulation kit available Model XORFK12
Chimney: | Adjustable |
Max Height Above Cooktop: | 32 |
Min Height Above Cooktop: | 27 |
Controls: | Digital |
Filter Type: | Aluminum Mesh Filters |
Cleanability: | Dishwasher Safe |
Number of Lights: | 2 |
Air Mover(s) Speed: | 3 |
Sones (Noise Level) Rating: | 4 |
Width (in.) | 29.94 |
Height (in.) | 10.56 |
Duct Size (in.) | 6 |
Depth (in.) | 12.06 |
Appliance Color | Stainless Steel |
Positioning | Stationary |
Color Finish Name | Stainless Steel |
Range Hood Type | Under Cabinet |
Appliance Fit Width (in.) | 30 |
Maximum CFM | 395 |
Voltage | 115 |
