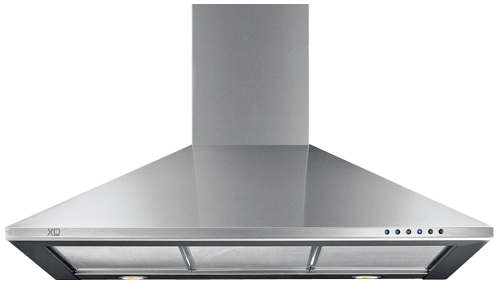

XO Fabriano Collection 30" Stainless Steel Chimney Wall Mount Range Hood


Model #:

XOB30SMUA

Model #: XOB30SMUA
61560
XO
$599.00

At a Glance

Product Dimensions 28.75"h x 30"w x 19.38"d

The Classic architectural lines that have inspired a revolution in modern hood design. Simple yet elegant a timeless design that will endure in your kitchen for years to come. Quiet and efficient at an unbelievable price.Read More

$599.00

Color Finish Name:Stainless Steel

What We Offer

Protect Your Purchase

View Options

None Selected

Get to know this product.

Product Overview

Product Overview

The Classic architectural lines that have inspired a revolution in modern hood design. Simple yet elegant a timeless design that will endure in your kitchen for years to come. Quiet and efficient at an unbelievable price. Make Up Air Compliant model numbers end with the designation “MUA”

Features and Benefits

  • Sones Min to Max are shown below for each model number
  • 3 speed electronic illuminated controls
  • 15 Minute delay off
  • Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface
  • High quality Stainless Steel with incomparable handcrafted Italian finish
  • Aluminum Mesh Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning.
  • Telescoping duct cover fits ceilings up to 9 ft tall
  • Mounting Height from cooking surface 27”-32”

Duct Options and Electrical Requirements:

  • 6 inch duct required
  • Ductless Option for applications where no ducting is available
  • AC 115v—60hz (4amp)

Options:

  • Optional duct cover extension is available for ceilings up to 10′ – Model XOEDCB
  • Optional re-circulation kit available Model XORFK04
Useful Documents
Specifications

General Specs

Width (in.)30
Height (in.)28.75
Duct Size (in.)6
Depth (in.)19.38
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Range Hood TypeWall Mounted
Appliance Fit Width (in.)30
Maximum CFM395
Voltage115

Construction

Chimney:Adjustable

Dimensions

Max Height Above Cooktop:32
Min Height Above Cooktop:27

Display

Controls:Digital

General Features

Filter Type:Aluminum Mesh Filters
Cleanability:Dishwasher Safe

Other

Number of Lights:2
Air Mover(s) Speed:3
Sones (Noise Level) Rating:4
WarningProposition 65 Warning for California Residents
