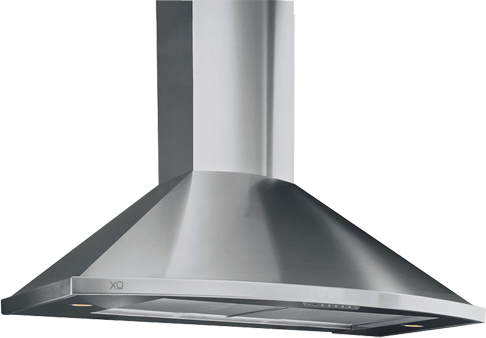

XO Fabriano Collection 30" Stainless Steel Wall Hood

Model #: XOS30SMUA

$699.00

At a Glance

The XOS is a perfect example of Italian design and quality. Beautifully curved front with soft angles make this design a perfect choice without compromising performance.

WarningProposition 65 Warning for California Residents
XO Fabriano Collection 30" Stainless Steel Wall Hood

Construction

ChimneyAdjustable

Display

ControlsDigital

Dimensions

Max Height Above Cooktop32
Min Height Above Cooktop27

General Features

Filter TypeAluminum Mesh Filters
CleanabilityDishwasher Safe

Other

Number of Lights2
Air Mover(s) Speed3
Sones (Noise Level) Rating4

General Specs

Width (in.)30
Height (in.)44
Duct Size (in.)6
Depth (in.)19.69
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Range Hood TypeWall Mounted
Appliance Fit Width (in.)30
Maximum CFM395
Voltage115

XO Fabriano Collection 30" Stainless Steel Wall Hood

Model #: XOS30SMUA
61660
Model #: XOS30SMUA
XO
$699.00

$699.00

You Might Also Need

Protection Plans

5 Year Major Appliance Warranty

$269.99

At a Glance

The XOS is a perfect example of Italian design and quality. Beautifully curved front with soft angles make this design a perfect choice without compromising performance.

Get to know this product.

The XOS is a perfect example of Italian design and quality. Beautifully curved front with soft angles make this design a perfect choice without compromising performance. Make Up Air Compliant model numbers end with the designation “MUA”

Features and Benefits:

    Sones Min to Max are shown below for each model number

    3 speed push button controls

    Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface

    High quality Stainless Steel with incomparable handcrafted Italian finish

    Aluminum Mesh Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning.

    Telescoping duct cover fits ceilings up to 9 ft tall

    Mounting Height from cooking surface 27”-32”

Duct Options and Electrical Requirements:

    6 inch duct required

    Ductless Option for applications where no ducting is available

    AC 115v—60hz (4amp)

Options:

    Optional duct cover extension is available for ceilings up to 10′ – Model XOEDCS

    Optional re-circulation kit available Model XORFK05

Specifications

General Specs

Width (in.)30
Height (in.)44
Duct Size (in.)6
Depth (in.)19.69
ColorStainless Steel
PositioningStationary
Color Finish NameStainless Steel
Range Hood TypeWall Mounted
Appliance Fit Width (in.)30
Maximum CFM395
Voltage115

Construction

Chimney:Adjustable

Dimensions

Max Height Above Cooktop:32
Min Height Above Cooktop:27

Display

Controls:Digital

General Features

Filter Type:Aluminum Mesh Filters
Cleanability:Dishwasher Safe

Other

Number of Lights:2
Air Mover(s) Speed:3
Sones (Noise Level) Rating:4
