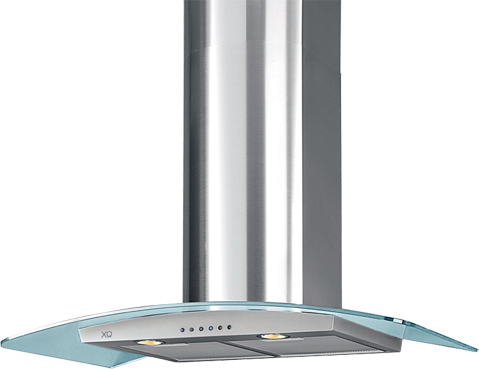

XO Fabriano Collection 36" Stainless Steel Wall Hood
$799.00
At a Glance
The XOM is a beautiful combination of glass and stainless steel. The curved design makes an elegant statement in any décor, while the clear glass canopy allows plenty of ambient light to reach the work surface.
Proposition 65 Warning for California Residents
Construction
| Chimney | Adjustable |
|---|
Display
| Controls | Digital |
|---|
Dimensions
| Max Height Above Cooktop | 32 |
|---|---|
| Min Height Above Cooktop | 27 |
General Features
| Filter Type | Aluminum Mesh Filters |
|---|---|
| Cleanability | Dishwasher Safe |
Other
| Number of Lights | 2 |
|---|---|
| Air Mover(s) Speed | 3 |
| Sones (Noise Level) Rating | 6.5 |
Misc. Specs
| Width (in.) | 36 |
|---|---|
| Height (in.) | 44 |
| Duct Size (in.) | 6 |
| Depth (in.) | 19.31 |
| Appliance Color | Stainless Steel |
| Positioning | Stationary |
| Color Finish Name | Stainless Steel |
| Range Hood Type | Wall Mounted |
| Appliance Fit Width (in.) | 36 |
| Maximum CFM | 600 |
| Voltage | 115 |
XO Fabriano Collection 36" Stainless Steel Wall Hood
Model #: XOM36G
At a Glance
Get to know this product.
Features and Benefits:
Sones Min to Max: 1.8 – 6.5
3 speed electronic illuminated controls
15 Minute delay off
Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface
High quality Stainless Steel with incomparable handcrafted Italian finish
Aluminum Mesh Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning.
Telescoping duct cover fits ceilings up to 9 ft tall
Mounting Height from cooking surface 27”-32”
Duct Options and Electrical Requirements:
6 inch round vertical duct required
Ductless Option for applications where no ducting is available
AC 115v—60hz (4amp)
Options:
Optional duct cover extension is available for ceilings up to 10′ – Model XOEDCM
Optional re-circulation kit available Model XORFK01
