Product Dimensions 11.5"h x 45.75"w x 18.44"d
The XOI insert is an integrated blower which allows you to match your custom hood to your kitchen. This simple and affordable design is easy to install. Designed and crafted in Italy for the ultimate in fit and finish. At XO we believe that good design is something everyone can afford.Read More

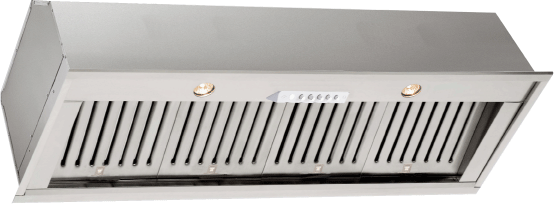

The XOI45KS insert is a 1000 CFM powerhouse integrated blower which allows you to match your custom hood to your kitchen. This simple and affordable design is easy to install. Designed and crafted in Italy for the ultimate in fit and finish. At XO we believe that good design is something everyone can afford.
High velocity blower optimally removes Smoke, Grease and Odors
Sones Min to Max: 2.0 – 8.0
Incomparable handcrafted Italian finish
3 speed push button controls
Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface
Professional Stainless Baffle Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning
Mounting Height from cooking surface 27"-32"
XOI4815KS requires 8 inch round vertical duct
Ductless Option not available for this model
AC 115v—60hz
Make Up Air Damper Model XOMA08
General Specs | |
| Color | Stainless Steel |
| Color-Finish Name | Stainless Steel |
| Range Hood Type | Insert |
| Duct Size (in.) | 8 |
| Maximum CFM | 1000 |
| Appliance Fit Width (in.) | 45 |
| Width (in.) | 45.75 |
| Height (in.) | 11.5 |
| Depth (in.) | 18.44 |
| Voltage | 120 |
| Amp | 6.2 |
| Frequency | 60 |
| Positioning | Stationary |
Construction | |
| Chimney: | Adjustable |
Dimensions | |
| Max Height Above Cooktop: | 32 |
| Min Height Above Cooktop: | 27 |
Display | |
| Controls: | Digital |
General Features | |
| Filter Type: | Baffle Filters |
| Cleanability: | Dishwasher Safe |
Other | |
| Number of Lights: | 2 |
| Air Mover(s) Speed: | 3 |
| Sones (Noise Level) Rating: | 7.9 |
