XO Fabriano Collection 29.94" Stainless Steel Wall Hood

XO

Model #:

XOT30S

At a Glance

Product Dimensions 11"h x 29.94"w x 22"d

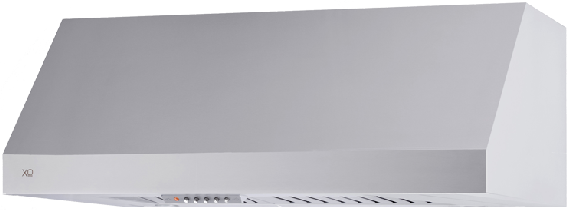

The XOT exemplifies the classic American Pro Hood design. Our superior quality materials and workmanship make this hood a standout among the rest. As with all XO ventilation a recirculation kit is also available.Read More

$749.00

Appliance Fit Width (in.):30

24$749.0030$749.0036$799.00

What We Offer

Get to know this product.

Product Overview

Product Overview

The XOT exemplifies the classic American Pro Hood design. This high performance under-cabinet hood includes baffle filters. Our superior quality materials and workmanship make this hood a standout among the rest. All XOT model sizes have an optional re-circulation kit available for ductless operation.

Features and Benefits:
  • High velocity blower optimally removes Smoke, Grease and Odors
  • Sones Min to Max for each model shown below
  • Incomparable handcrafted Italian finish
  • 3 speed push button controls
  • Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface
  • Professional Stainless Baffle Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning
  • Mounting Height from cooking surface 27″-32″

Duct Options and Electrical Requirements:
  • 600 CFM models require 6 inch round vertical duct which can be converted to 3 1/4″ x10″ Top or Rear Venting
  • XOT48KS (1000 CFM model) requires 8 inch round vertical duct
  • Ductless Option for applications where no ducting is available
  • AC 115v—60hz (4amp)

Optional Re-circulation Kits

(adds 2 1/4″ height)
  • 24″ Model XORFK06
  • 30″ Model XORFK07
  • 36″ Model XORFK08
  • 48″ Model XORFK09
Useful Documents
Product Manual
Specification Sheet
Specifications

General Specs

Width (in.)29.94
Height (in.)11
Duct Size (in.)10
Depth (in.)22
ColorStainless Steel
Color/Finish NameStainless Steel
PositioningStationary
Range Hood TypeWall Mounted
Appliance Fit Width (in.)30
Maximum CFM600
Voltage120
Amp4.35
Frequency60

Construction

Chimney:Adjustable

Dimensions

Max Height Above Cooktop:32
Min Height Above Cooktop:27

Display

Controls:Digital

General Features

Filter Type:Baffle Filters
Cleanability:Dishwasher Safe

Other

Number of Lights:2
Air Mover(s) Speed:3
Sones (Noise Level) Rating:6.5
