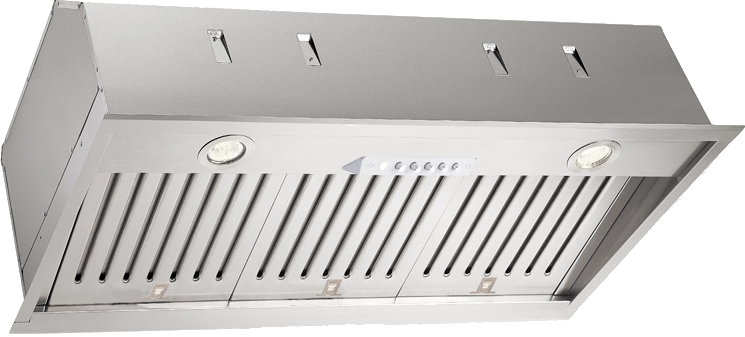

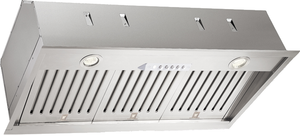

XO Ventilation XOI3315 Series 33" Stainless Steel Custom Hood Insert

$799.00

At a Glance

XO Ventilation XOI3315 Series 33" Stainless Steel Custom Hood Insert with 395 CFM and 3-speed push button controls

Proposition 65 Warning for California Residents

People also viewed:

The XOI3315 insert is an integrated blower with a more narrow profile to match your custom hood to your kitchen. This simple and affordable design is easy to install. Designed and crafted in Italy for the ultimate in fit and finish. At XO we believe that good design is something everyone can afford.Make Up Air Compliant model numbers end with the designation “MUA”

Features and Benefits:

High velocity blower optimally removes Smoke, Grease and Odors

Sones Min to Max for each model shown below

Incomparable handcrafted Italian finish

3 speed push button controls

Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface

Professional Stainless Baffle Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning

Mounting Height from cooking surface 27″-32″

Duct Options and Electrical Requirements

395 CFM and 600 CFM models require 6 inch round vertical duct which can be converted to 3 1/4″ x10″ Top or Rear Venting

Ductless Option for applications where no ducting is available (see below)

XOI3315KS (1000 CFM model) requires 8 inch round vertical duct

Ductless Option not available for this model

AC 115v—60hz (4amp)

Options:

Recirculation kit for 395 CFM & 600 CFM models  XORFK04

Unit Dimensions: 33 3/4″ W x 15″ D x 11 1/2″ T
