Product Dimensions 11"h x 48"w x 22"d

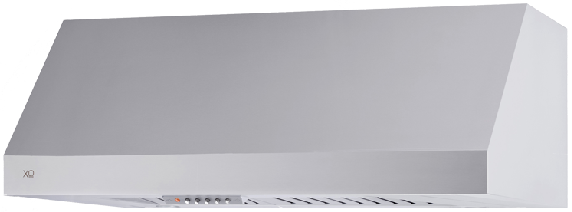

The XOT exemplifies the classic American Pro Hood design. This high performance under-cabinet hood includes baffle filters. Our superior quality materials and workmanship make this hood a standout among the rest. All XOT model sizes have an optional re-circulation kit available for ductless operation.Read More
View Options
High velocity blower optimally removes Smoke, Grease and Odors
Sones Min to Max for each model shown below
Incomparable handcrafted Italian finish
3 speed push button controls
Two 50 W Halogen Lights ā Provide brilliant illumination over the cooking surface
Professional Stainless Baffle Filters ā Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning
Mounting Height from cooking surface 27"-32"
600 CFM models require 6 inch round vertical duct which can be converted to 3 1/4? x10? Top or Rear Venting
XOT48KS (1000 CFM model) requires 8 inch round vertical duct
Ductless Option for applications where no ducting is available
AC 115vā60hz (4amp)
24" Model XORFK06
30" Model XORFK07
36" Model XORFK08
48" Model XORFK09
General Specs | |
Width (in.) | 48 |
Height (in.) | 11 |
Duct Size (in.) | 10 |
Depth (in.) | 22 |
Color | Stainless Steel |
Positioning | Stationary |
Color Finish Name | Stainless Steel |
Range Hood Type | Wall Mounted |
Appliance Fit Width (in.) | 48 |
Maximum CFM | 1000 |
Voltage | 115 |
Construction | |
Chimney: | Adjustable |
Dimensions | |
Max Height Above Cooktop: | 32 |
Min Height Above Cooktop: | 27 |
Display | |
Controls: | Mechanical |
General Features | |
Filter Type: | Baffle Filters |
Cleanability: | Dishwasher Safe |
Other | |
Number of Lights: | 2 |
Air Mover(s) Speed: | 3 |
Sones (Noise Level) Rating: | 8 |
