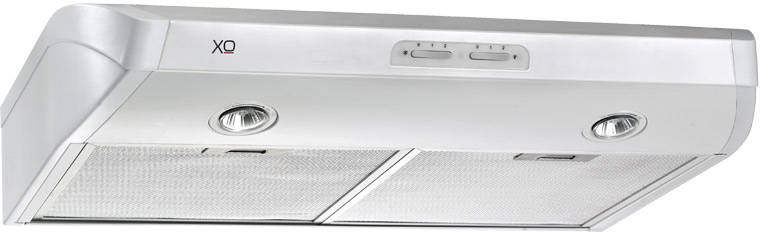

XO Ventilation XOE Series 36" White Under Cabinet Hood


Model #:

XOE36W

At a Glance

Product Dimensions 5.68"h x 36"w x 22"d

XO Ventilation XOE Series 36" White Under Cabinet Hood with 350 CFM and two halogen lightsRead More

$290.00

Color Finish Name:White

What We Offer

Get to know this product.

Product Overview

Product Overview

The XOE is part of our Performance Collection, with the Do-It-Yourself-er and smaller make-overs in mind. It provides customers the opportunity to employ XO quality and innovation to vent their kitchen without having to re-invent their kitchen. These models are Make Up Air compliant (MUA)



Features and Benefits:

  • 350 CFM high velocity blower optimally removes Smoke, Grease and Odors
  • Sones Min to Max: 1.0 – 5.5
  • 2 speed rocker switch controls
  • Two 50 W Halogen Lights – Provide brilliant illumination over the cooking surface
  • 2 level lighting rocker switch control
  • Aluminum Mesh Filters – Trap airborne smoke and grease particles. They can be easily be removed for dishwasher-safe cleaning
  • Mounting Height from cooking surface 27″-32″

Duct Options and Electrical Requirements:

  • 6 inch round can be converted to 3 1/4″ x10″ Top or Rear Venting
  • Ductless Option for applications where no ducting is available
  • AC 115v—60hz (4amp)

Options:

  • Optional re-circulation kits available Model XORFK10 for XOE30 – XORFK11 for XOE36
Useful Documents
Specifications

General Specs

Width (in.)36
Height (in.)5.68
Duct Size (in.)10
Depth (in.)22
ColorWhite
Color/Finish NameWhite
PositioningStationary
Range Hood TypeUnder Cabinet
Appliance Fit Width (in.)36
Maximum CFM350
Voltage115

Construction

Chimney:Adjustable

Dimensions

Max Height Above Cooktop:32
Min Height Above Cooktop:26

Display

Controls:Digital

General Features

Filter Type:Aluminum Mesh Filters
Cleanability:Dishwasher Safe

Other

Number of Lights:2
Air Mover(s) Speed:2
Sones (Noise Level) Rating:4.1
